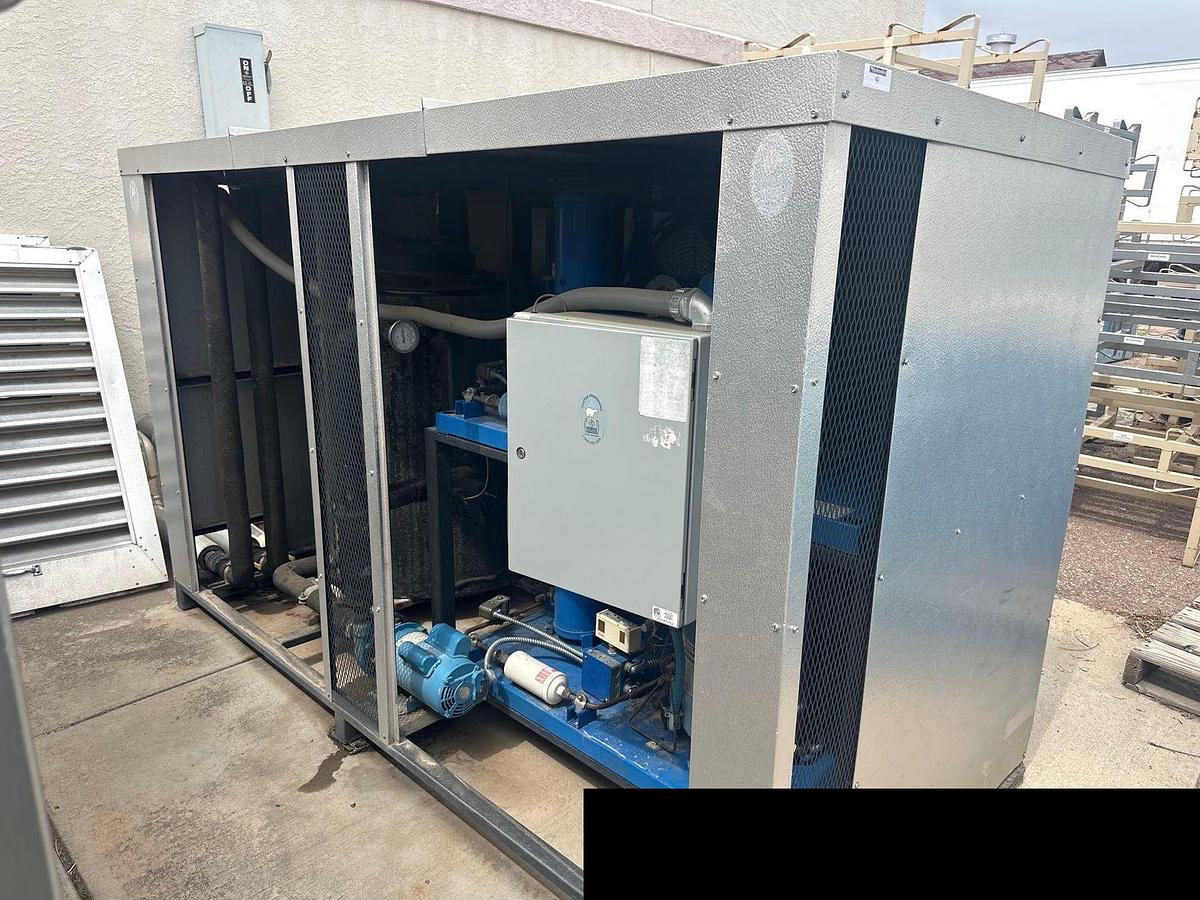

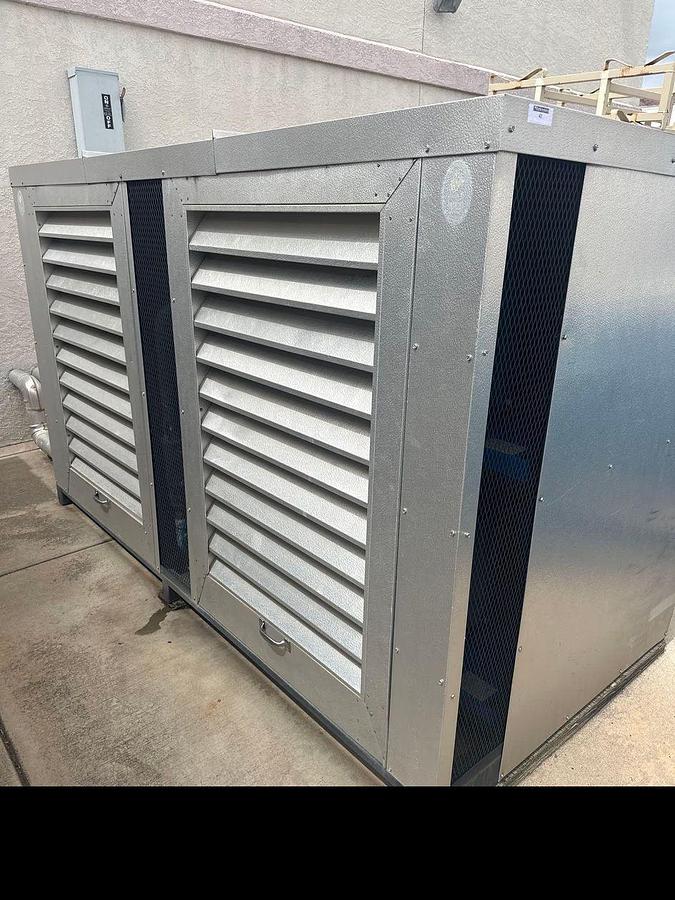

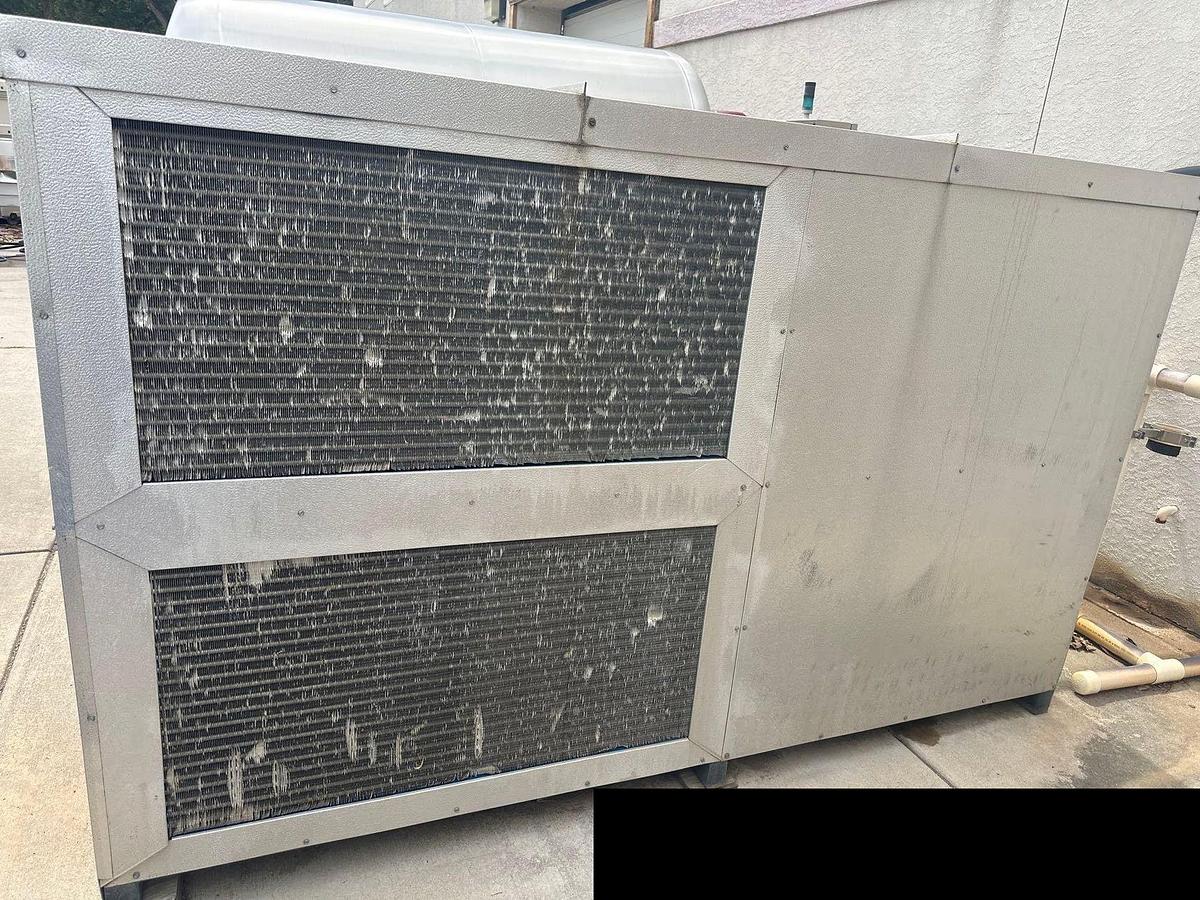

Used G&D 5x5 Package Glycol Chiller

(1) available - Used G&D 5x5 (10hp) packaged glycol chiller. This machine was used in a small winery and is represented in excellent shape. New cost today is approximately $32,000. The machine was built new in approximately 2017 and has the following specifications -

• 2 complete refrigeration circuits for redundancy and load control
• Engineered high efficiency heat exchanger for maximum energy savings
• Glycol pump
• Insulated glycol reservoir with level indicator
• Dynamic fluid bypass valve

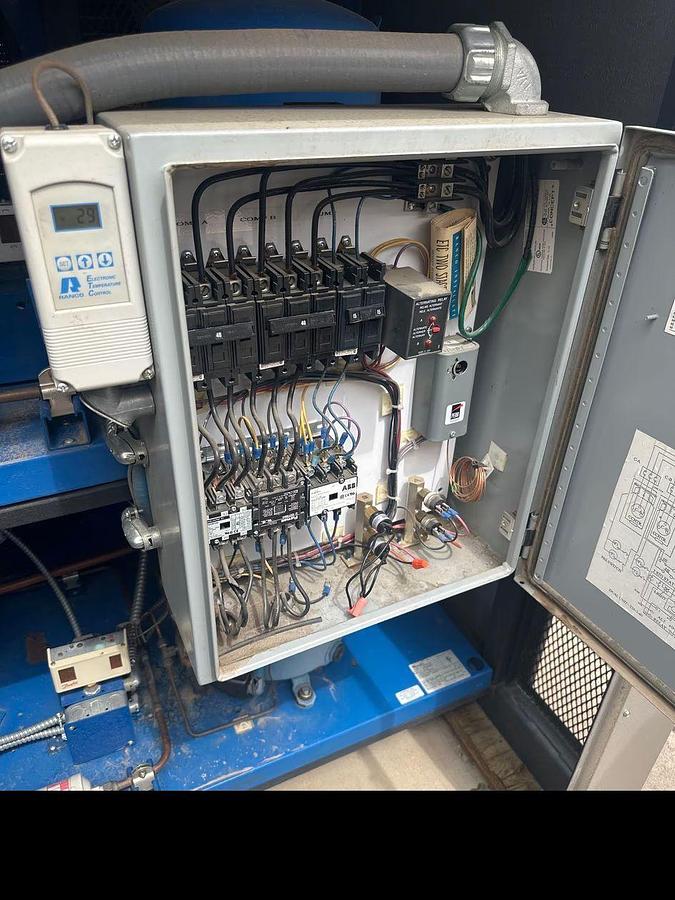

• ETL 508A listed complete control panel with single point electrical connection, breakers, starters & safety switches
• All insulated copper piping
• High and low pressure controls
• Freeze stat safety switch
• High temp alarm
• Low ambient control
• Compact microprocessor controller with communication capabilities
• Digital phase and voltage monitoring with error log
• Supply and return ball valves
• Anti cycle timer to prevent short cycling of compressor
• On/pump down/off switch
• Fully powder coated steel frame
• Powder coated aluminum housing
• Louvered access panels for easy service and maintenance

The machine is scheduled to be removed from service late Septemeber 2026 as the winery has closed production and no longer operates.
